Raceday X-Series Thermostatic Oil Sandwich Plate – Multi-Angle, -10AN

Built for Race Cars. Ready for Anything.The Raceday X-Series Thermostatic Oil Sandwich Plate is engineered for serious motorsport and high-performance street applications. Designed with a multi-angle outlet system and a high-flow internal thermostat, it delivers faster warm-ups, precise temperature control, and complete adaptability for custom installs.

Its dual-orientation design allows oil lines to exit either parallel to the engine block (0°) or at a 45° angle—perfect for tight engine bays, turbo manifolds, or off-road clearance issues.

The built-in thermostat ensures the oil cooler circuit stays closed until operating temperature is reached, protecting your engine from overcooling and reducing wear during warm-up.

🔧 Key Features:

• Multi-angle outlet ports: choose 0° or 45° line orientation
• Internal thermostatic valve for controlled oil temps
• High-flow CNC-machined 6061 aluminum body
• Hard anodized black finish with laser-etched Raceday logo
• M22 x 1.5 ports (compatible with -10AN fittings – included)
• Dual 1/8” NPT sensor ports (plugs included)
• Includes both M20 x 1.5 and 3/4"-16 center bolts for universal fitment
• Viton O-ring included

🌡️ Thermostat Temperature Options:

Select your preferred thermostat activation temp above:

• 82°C / 180°F – Hot climates & aggressive track use
• 92°C / 198°F – Balanced choice for fast road & mixed climates
• 102°C / 216°F – Cold climates or short trip driving

Each unit includes a pre-installed thermostat based on your selection.

📦 What’s Included:

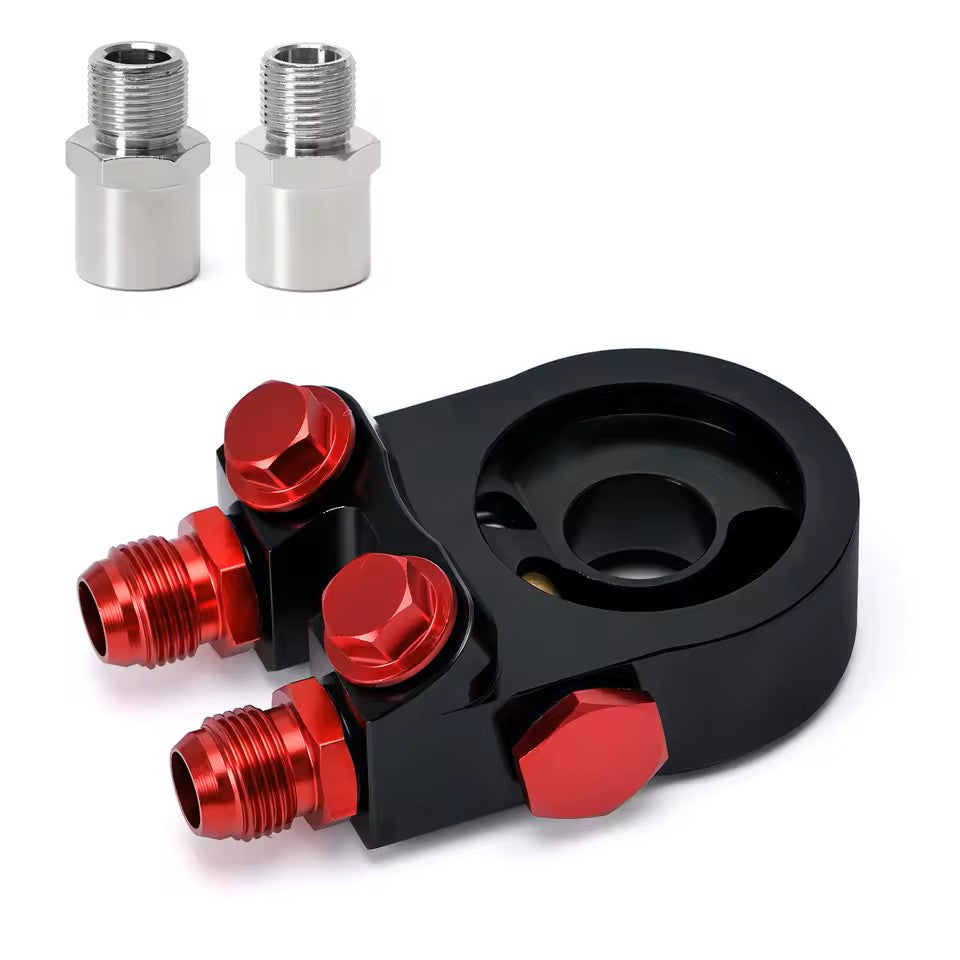

• 1x Raceday X-Series Thermostatic Sandwich Plate (multi-angle design)
• 1x Pre-installed thermostat (based on your selection)
• 2x -10AN ORB to Male Adapters
• 2x 1/8” NPT sensor port plugs
• 1x M20 x 1.5 Center Bolt
• 1x 3/4"-16 UNF Center Bolt
• 1x Viton O-ring

⚙️ Recommended Applications:

• Engine oil cooling for track, drift, off-road, or high-performance street builds
• Ideal for use with Raceday X-Series Oil Coolers and Hose Kits
• Works with both universal and custom-configured cooling systems
